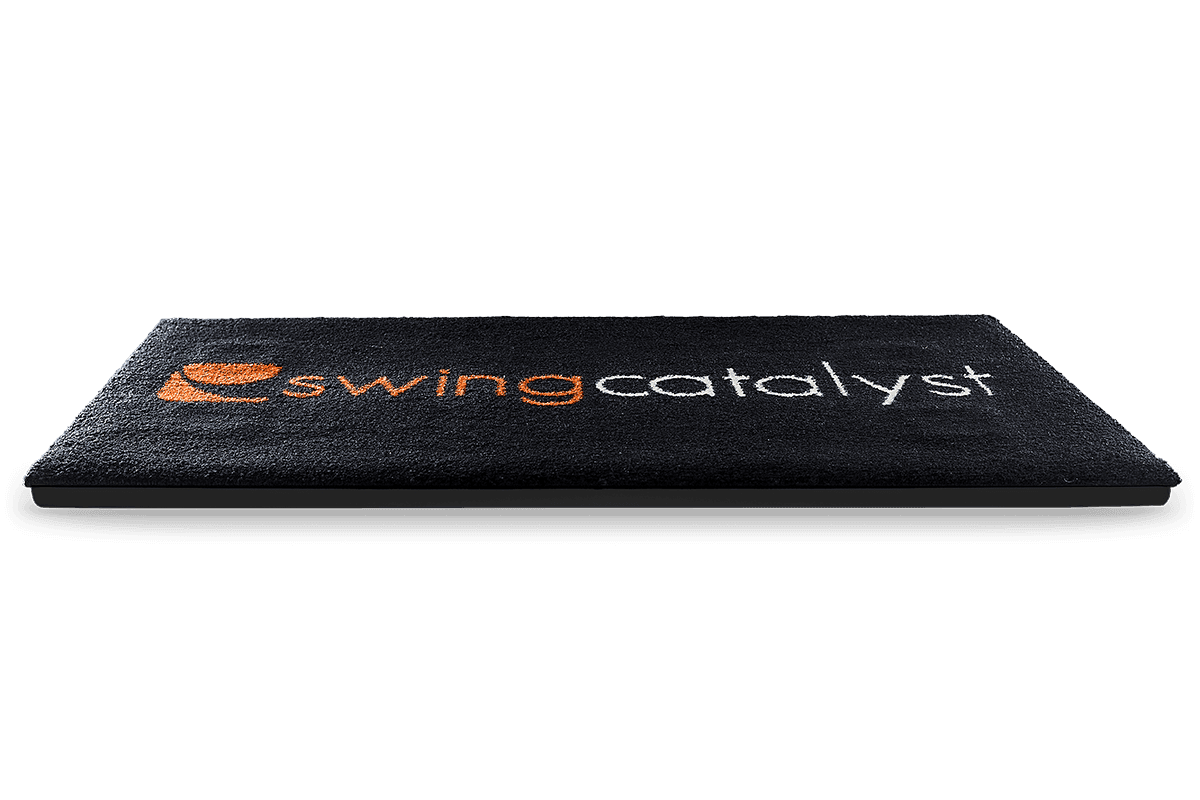

Balance Plate

- A peek behind the curtain

The Swing Catalyst Balance Plate adds an important dimension to golf instruction. It provides the instructor with critical information that will lead to a better understanding of the golf swing.

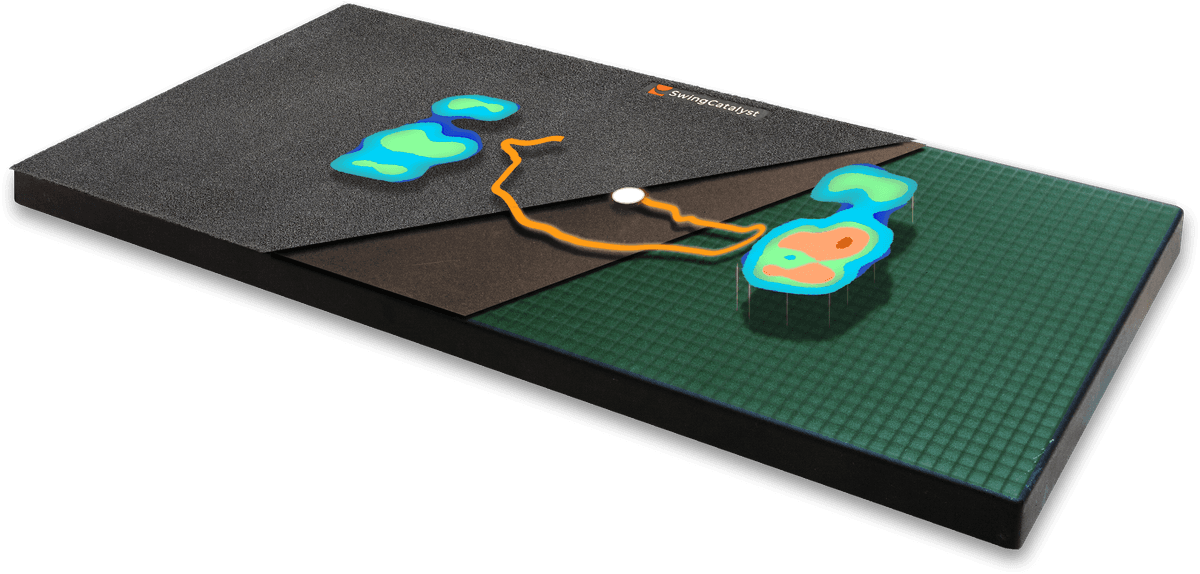

The Balance Plate, consisting of more than 2000 high-resolution pressure sensors, provides detailed foot pressure data, accurate pressure distribution, real time center of pressure (CoP), and CoP patterns.

All are elements that cannot be determined by the best trained eye or even expensive high-speed cameras.

The Swing Catalyst Balance Plate data is perfectly synchronized with high-speed video images as well as data from the most popular ball/club tracking devices.

  • Pressure distribution
  • Center of Pressure (CoP)
  • Detailed foot pressure distribution
  • CoP patterns
  • Video synchronization
Request a Quote

0% financing options now available (US only) on Plate Purchases, contact sales for more information.

RRP USA/Canada $ 7.300 (ex software and cameras)

Technical Specifications

Pressure Distribution and Stance Width

The pressure distribution accurately depicts which part of your feet is pressuring the ground at each instant in the swing. This means that you can easily spot whether you are leaning too far back (on your heels), forward (on your toes), on the lateral (outside part) of your foot, or on the medial (inside part) of your foot. This can provide some valuable information related to the golfer’s ability or inability to produce certain ground reaction forces. It also provides information about the percentage of pressure under your left and right foot at any part of the swing. This helps you understand how much each leg is contributing to producing the golf swing motions, and can be tailored/optimized for every golfer.

The Swing Catalyst Balance Plate also provides an accurate measurement of stance width, calculated from the distance between the center of pressure of each foot. The distance between the golfer’s feet helps determine the types of ground reaction forces, and hence the motions they will be capable of producing, so the balance plate can be used to dial in the optimal stance width for every golfer.

Center of Pressure and Swing Pattern

Swing Catalyst calculates three different center of pressure (CoP) measurements throughout the golf swing. These are the CoP of the right foot, the CoP of the left foot, and the total CoP. The total CoP is represented by a large white dot and it closely related to the Center of Gravity (CoG), but they are not the same. You can watch the level 1 Swing Catalyst certification videos online to learn more about the difference between the CoP and center of mass/center of gravity. The path the total CoP follows throughout the swing is drawn over the period of a registered swing. As the video is automatically synced with the CoP pattern (even if the bookmarks are not set correctly), you can closely study any subtle movements or inconsistencies while scrolling the video back and forth. This enables the user to pinpoint which sections of a swing show irregularities, with extreme accuracy.

The software also calculates the individual CoP location within each foot, and these are represented by small white dots. The small white dots are also joined by a think grey line. This thin grey line can give us much information about how the golfer is dynamically “aiming” their pressures and can influence the direction the club takes as it approaches the golf ball…

Video and data synchronization

All Balance Plate data is automatically synced perfectly with the video images and ball/club tracking data.

Sensor Plate Mat

Get a fresh mat for your Swing Catalyst Balance plate, it will feel like new. Fits both the Balance Plate and the 3D Motion Plate.Size: 50×100


The softbag is custom made for the Swing Catalyst Balance Plate. Extra padding for protection and comfortable handes and padded strap makes this softbag ideal for short distance transportation of the Balance Plate.Not certified for air transport.


The flight case is custom made for the Swing Catalyst Balance Plate. Perfect for flight travel with the Balance Plate. With wheels for easy transportation.


Pressure Plate Technical Specification

Size: 19.9″ x 38.8″ / 50.5cm x 98.6cm
Sensor size: 0.6” x 0.6” / 1.5cm x 1.5cm
Number of sensors: 2048
Sensing area: 19” x 38” / 48.2cm x 96.5cm
Force range: 30PSI
Scan rate: 100hz
Weight: 13lbs / 5.9kg
