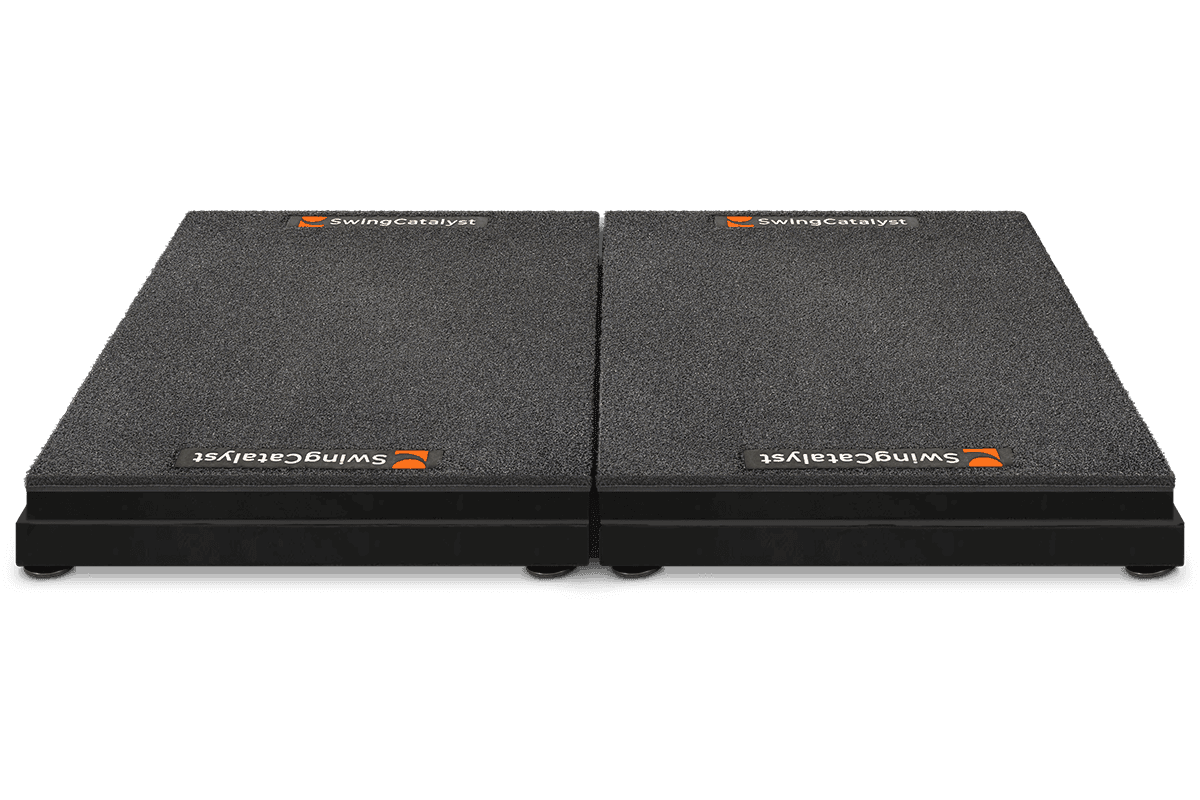

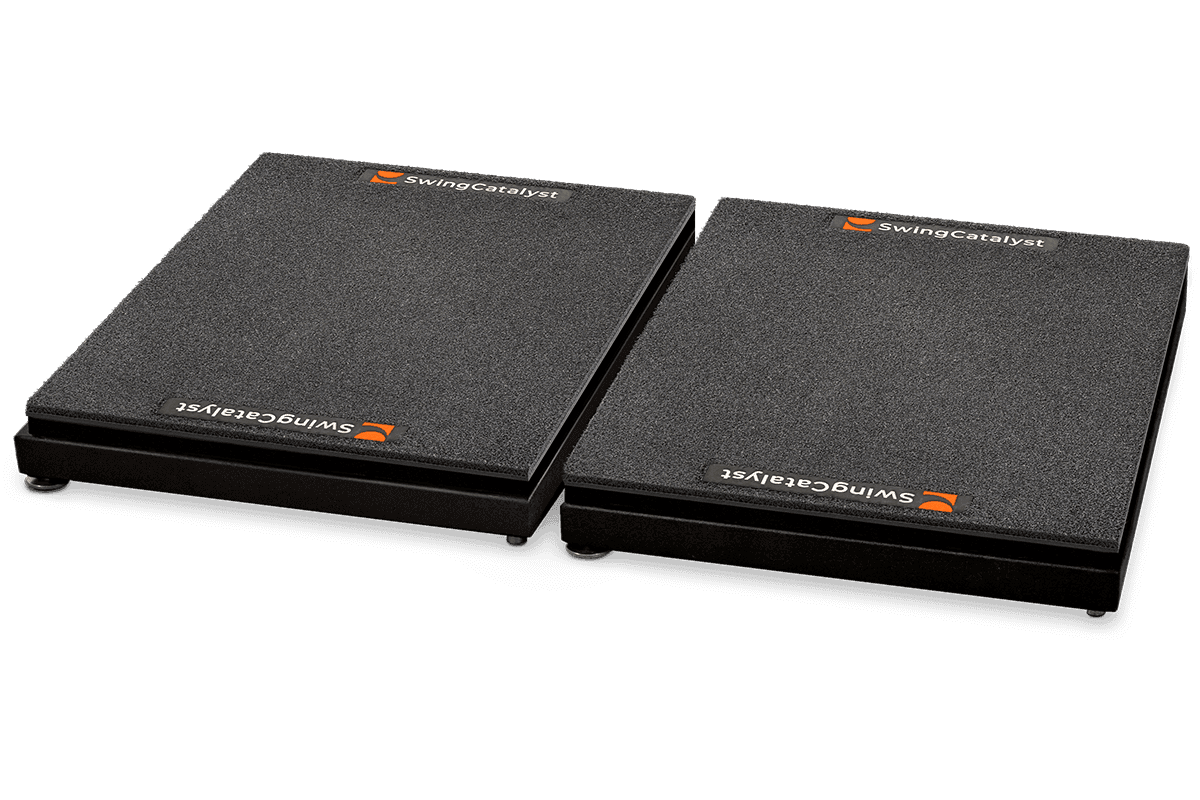

Dual Motion Plates For Individual Foot Analysis

Individual foot analysis in every swing

The most complete ground analysis available

Swing Catalyst Dual Motion Plates measure force and pressure for each foot at 1,000 Hz, with 11 metrics per swing. Used by coaches working with the best players in the world.

Buy now — $36,400 Contact sales

Loading section...

1,000 Hz
sampling rate per foot
11
distinct metrics per swing
2 plates
independent per-foot force measurement
19 kg
per plate

Loading section...

Flagship precision

The most detailed swing analysis available. Nothing comes close.

The Dual Motion Plate system doesn't just measure what happens underfoot — it measures what happens under each foot, independently, at 1,000 times per second. Vertical force, horizontal shear, torque, free moment, pressure trace, heat maps, individual balance trace, stance analysis — all captured per foot, in real time, synchronized frame-by-frame with video and launch monitor data. This is the system that coaches use when getting it right isn't optional.

Loading section...

Built for serious instruction

Why coaches choose the Dual Motion Plate

11 metrics per swing

Pressure trace, individual balance trace, pressure distribution, heat mapping, stance width, balance point speed, horizontal shear force, twisting force, free moment, vertical force, force vectors — every metric in one system.

Fully integrated

All data synchronizes with video and launch monitor feeds inside Swing Catalyst Pro+. One platform. The complete picture.

Per-foot force measurement

Not total force — force per foot. See exactly how your student loads the lead foot vs. the trail foot through every phase of the swing. The asymmetries this reveals are invisible to every other system.

1,000 Hz sampling rate

A standard pressure plate captures 130–150 data points per second. The Dual Motion Plate captures 1,000. That's the difference between seeing a swing and understanding one.

Loading section...

11 metrics. Two feet. One system.

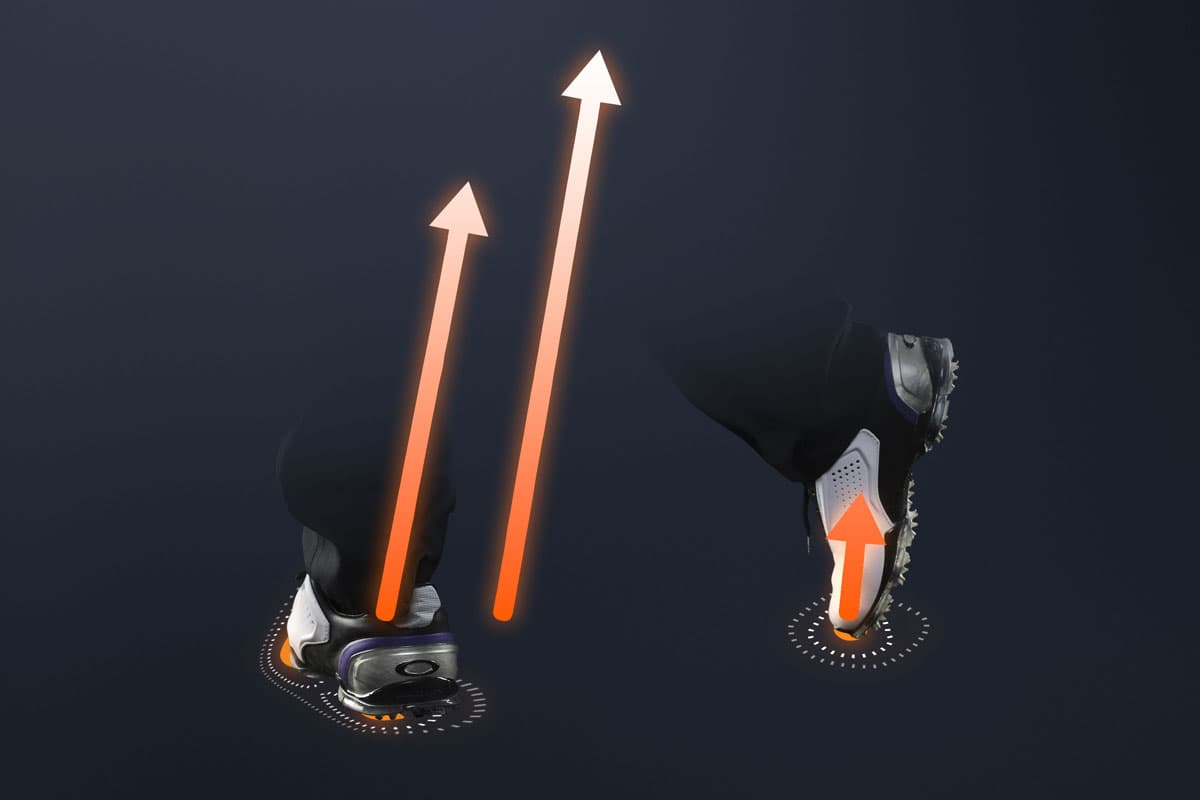

Measure exactly how hard each foot pushes the ground — and in which direction. Capture the vertical ground reaction force for each foot independently through the entire swing. Visualize force vectors to see the direction and magnitude of force application at every frame. Identify loading asymmetries and power transfer timing that are physically impossible to observe any other way.

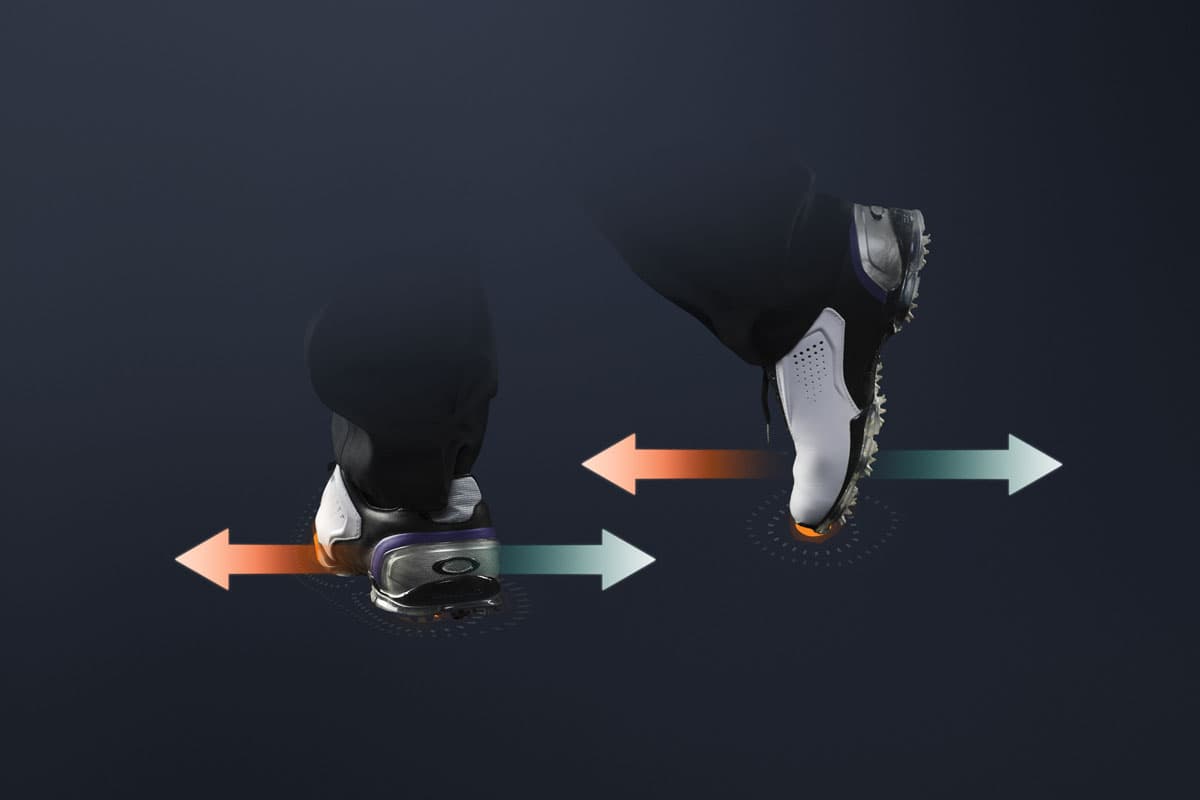

The hidden driver of clubhead speed. Measure lateral and rotational ground forces for each foot separately. Horizontal shear is one of the strongest biomechanical predictors of power output — and identifying weaknesses here directly translates to measurable speed gains.

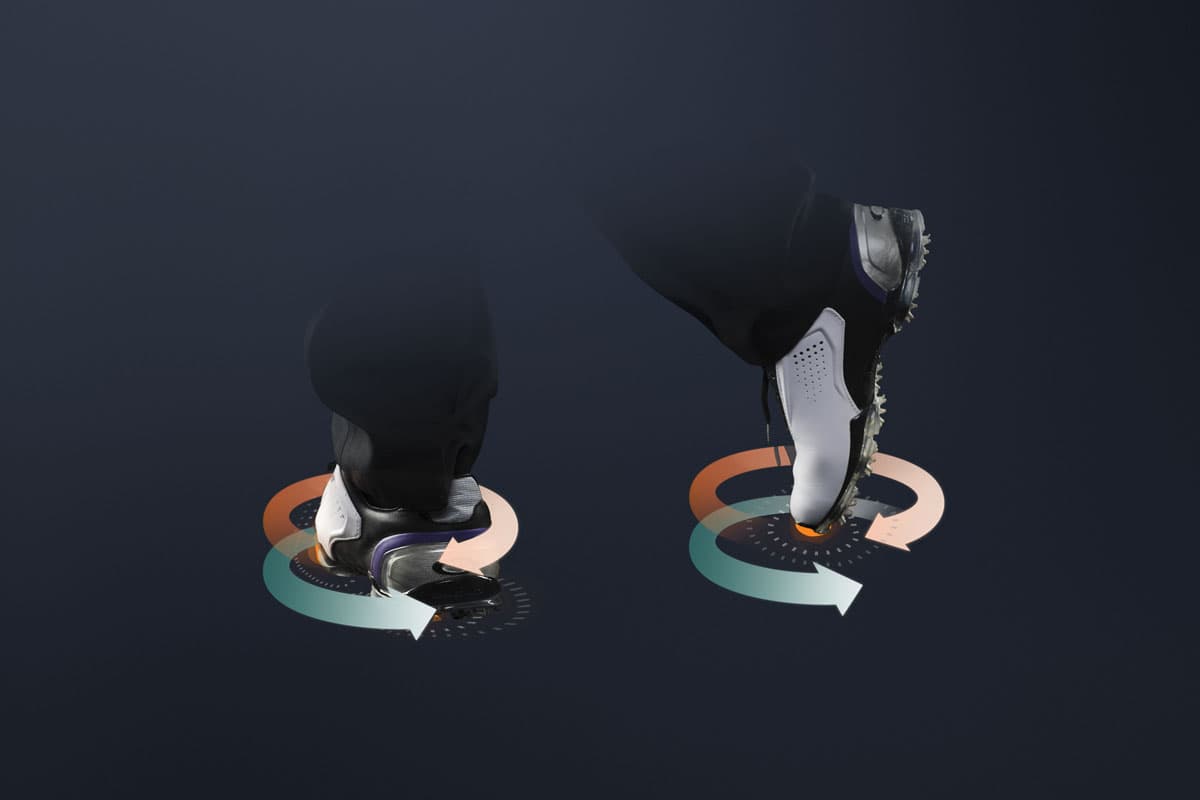

Rotational power, quantified. Measure torque and free moment at each foot independently. Understand how your student rotates against the ground, whether they're maximizing hip-shoulder separation, and where rotational inefficiencies cost them distance and control.

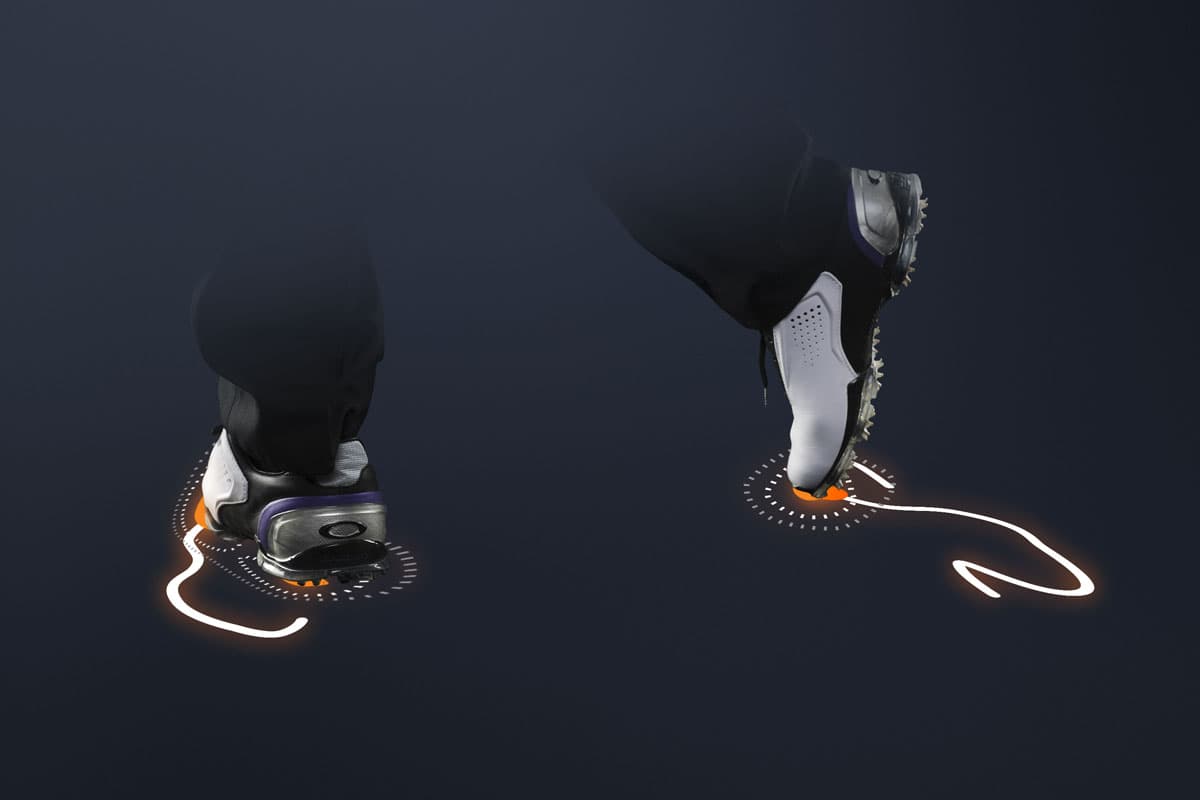

Complete pressure data. Per foot. Full individual pressure traces, heat maps, and balance traces for each foot separately — at 1,000 Hz. See imbalances between lead and trail foot that would be invisible in a combined reading. The granularity at this level is unmatched anywhere in golf coaching.

Loading section...

Complete coaching kit

Product bundle

The complete flagship system — plates, cameras, software, courses, and shaft fitting — everything for elite-level coaching.

Dual Motion Plate	$36,400
4× Fox USB Camera (5m)	$2,295
Pro+ Software — 1 yr (MoCap incl.)	$1,350
Coaching with Pressure + Net GRFs courses	Free
Coaching with Dual Plates	Free
Terra Forza — 1 year	Free

Bundle price $39,495

Save $2,025 vs. buying individually

Buy bundle — $39,495

Loading section...

"I've used Swing Catalyst for years and I've never seen the data come up on screen where I disagree with it. It's batting 1,000 — I trust the data."

Tim Cooke

Swing Catalyst ambassador

Loading section...

Ready to upgrade to the flagship?

If you're currently running a Motion Plate or Balance Plate system, upgrading to the Dual Motion Plate adds per-foot force measurement and expands your metrics from 6 to 11 per swing. Your existing Pro+ software, cameras, and launch monitor integration carry over. Our team handles the full migration.

Talk to sales

Loading section...

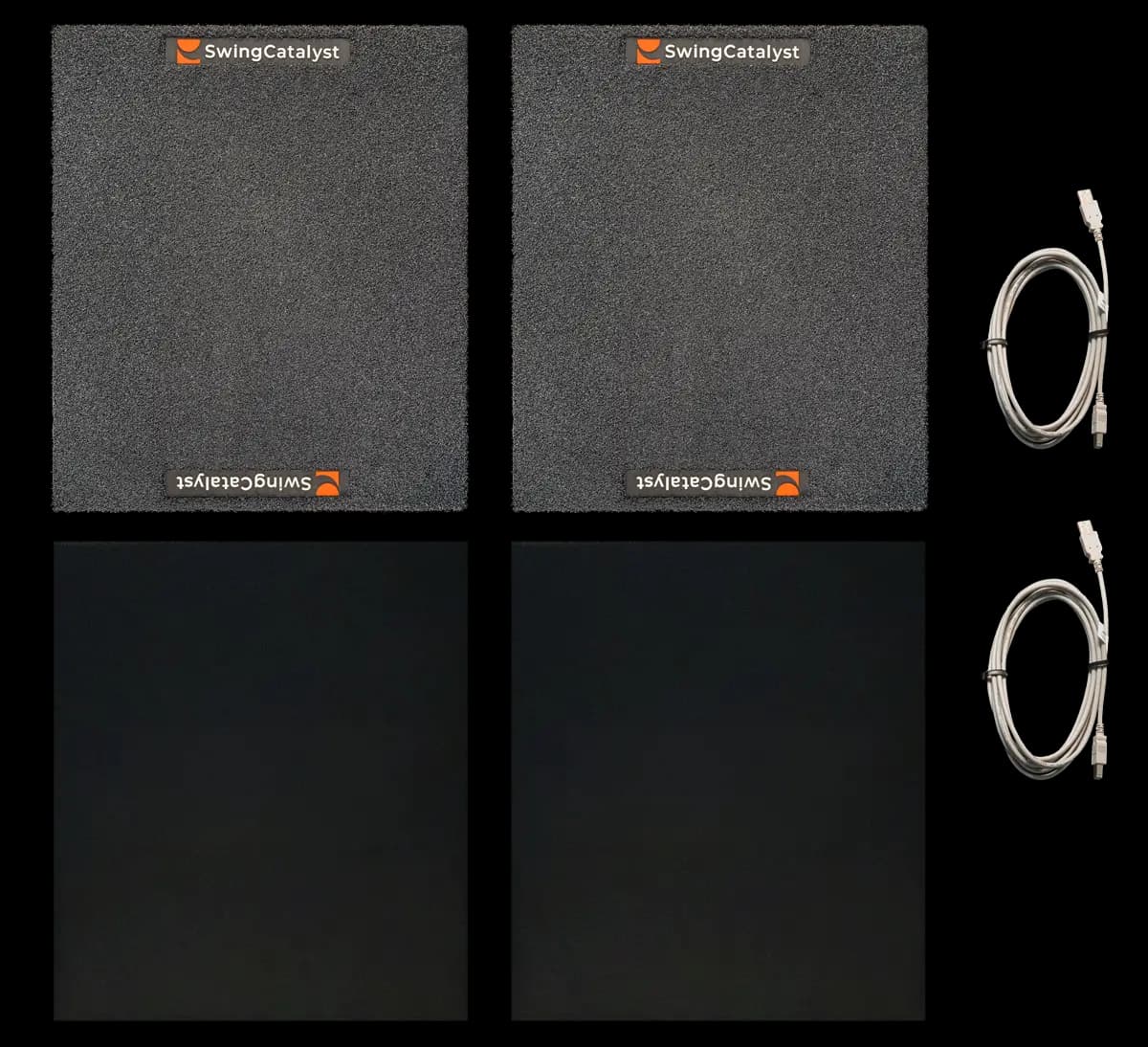

What’s in the box

The complete flagship system

Swing Catalyst Dual Motion Plates (×2)
Logo mat
Cables

Requires Swing Catalyst Pro+ software. Studio installation. Contact sales for full setup support.

Buy now — $36,400

Loading section...

Technical specifications

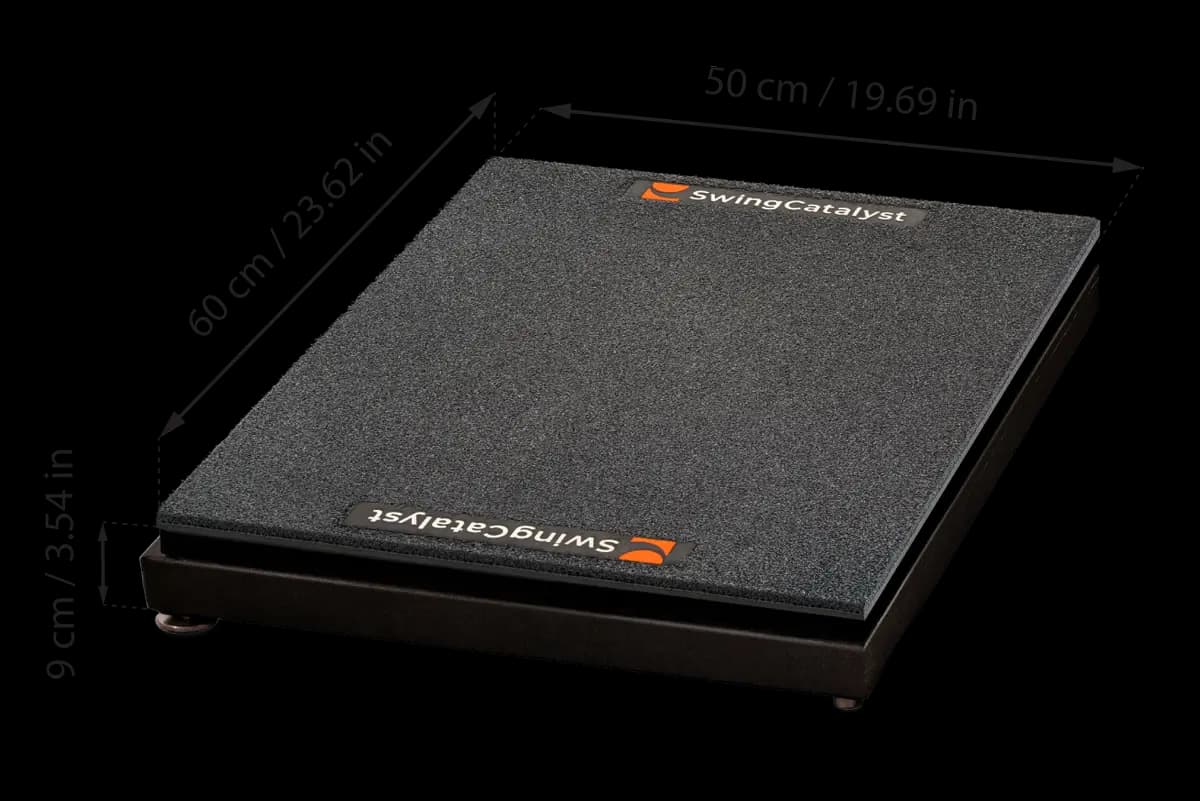

Dimensions (per plate)	50 × 60 × 9 cm / 19.69 × 23.62 × 3.54 in
Weight (per plate)	19 kg / 41.9 lb
Sampling rate	1,000 Hz
Max vertical load	10,000 N
Max shear load	5,000 N
Installation	Studio
Transmission / Power	Wired USB
Software	Pro+ required
Warranty	2 years (pressure) + 1 year (force components)

Computer recommendations

Operating System	Windows 10 or 11 64-bit
Processor	Intel Core i5/i7/i9 (8+ cores)
Memory	16 GB
Graphics	Nvidia GTX/RTX 3050 or newer

Common questions

The key difference is per-foot measurement. The Motion Plate gives you combined force data for both feet. The Dual Motion Plate gives you independent force and pressure data for the left foot and right foot separately — at 1,000 Hz. This unlocks 11 distinct metrics vs. 6, including per-foot force vectors, individual torque analysis, and separate balance traces.

Yes. The Dual Motion Plate system is used by coaches working with professional tour players, national federations, and top-ranked academies worldwide.

Swing Catalyst Pro+ software is required. All 11 metrics are accessible through Pro+, synchronized with video and launch monitor data.

The plates are studio-installed. Our team provides full remote setup support and a dedicated onboarding session to ensure you're capturing and interpreting data correctly from day one.

Yes. Contact our sales team to discuss payment options and institutional pricing for academies and programs.

2-year warranty on pressure components, 1-year warranty on force plate components. Extended ESA available for multi-year coverage.
